Showing all 4 results

Turbosystems

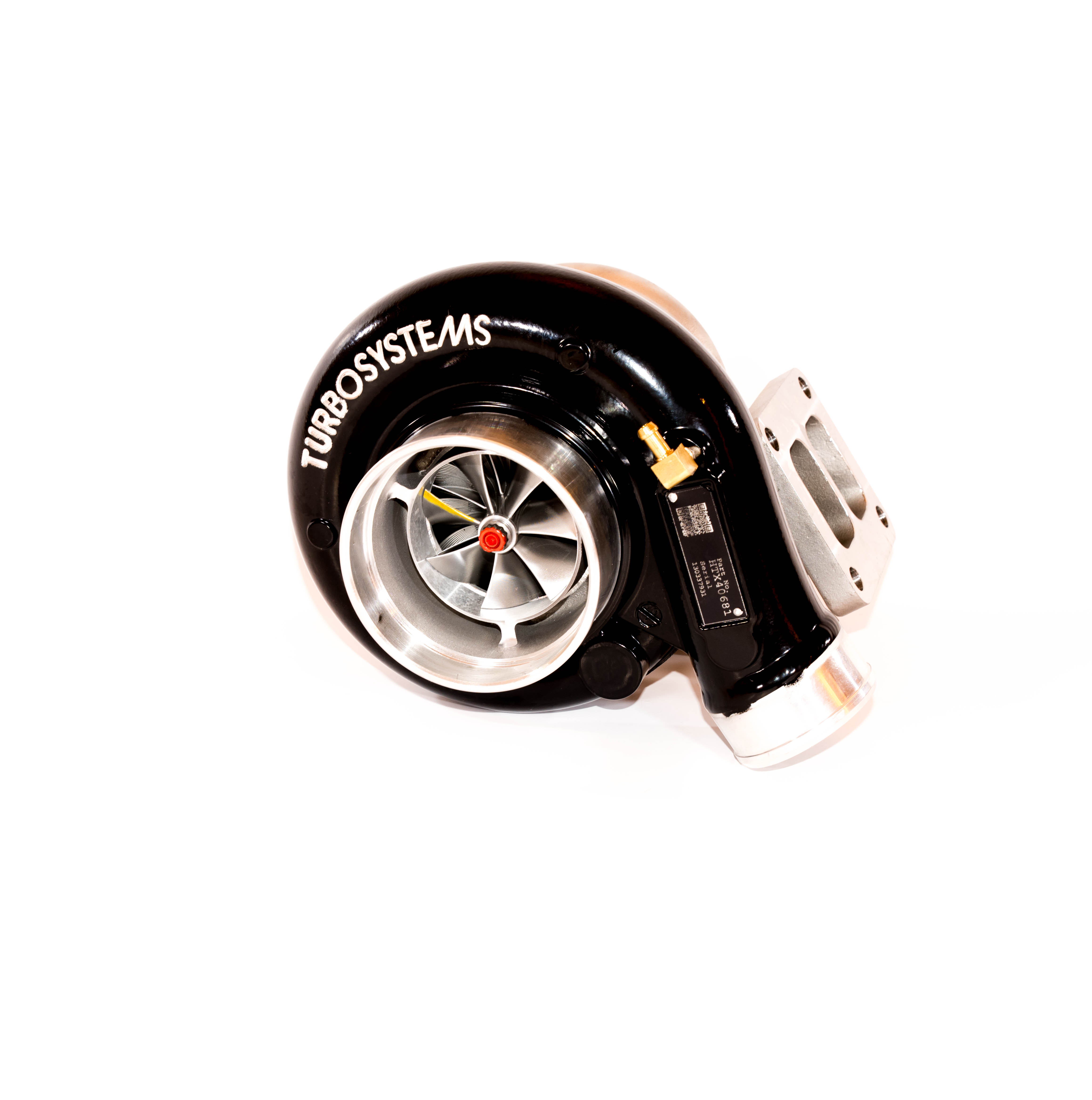

  • Turbosystem HTX40861 Kullagard

    Turbosystem HTX4068B1 Kullagard

    15495 KR
    Art. nr: HTX4068B1



    Antalst :
    Kategori:

    Power range:
    700-850 WHP

    ✪ Compressor side Technical features:
    Special point milling design 7 7 blades compressor wheel machined from the solid from
    special grade aircraft aluminum.
    Compressor air Intake diameter: 100 mm
    Compressor air Outlet diameter: 63 mm
    Compressor wheel:
    ✔ Inducer 68 mm
    ✔ Exducer 91 mm extended tip
    ✪ Turbine side Technical features:
    Special design 19 cm2, (AR 1,02) twin scroll turbine housing made from stainless steel suitable
    to work with high temperatures. High flow 10 blades turbine wheel.
    T4 flange twin scroll
    3” V-bound clamp connection for exhaust
    Turbine wheel:
    ✔ Inducer 76 mm
    ✔ Exducer 68 mm

    Turbosystem HTX40861 Kullagard

    Turbosystem HTX4068B1 Kullagard

    15495 KR

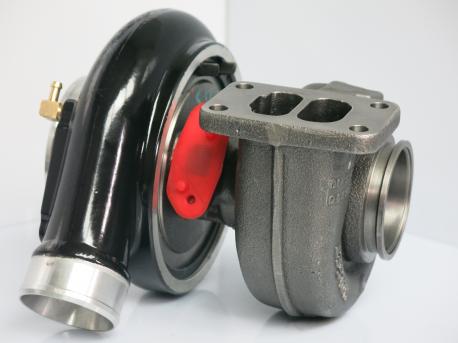

  • Turbosystems HTX40602 Kullagrad

    Turbosystems HTX3058B3 Kullagrad

    12995 KR
    Art. nr: HTX3058B3



    Antalst :
    Kategori:

    Power range: 450-650 HP

    Basic information

    • Cooling: Water cooled bearing housing with 2 M14x1.5 ports
    • Bearings: Dual ceramic ball bearings
    • Compressor air Intake diameter: 101mm (4″)
    • Compressor air Outlet diameter: 51mm (2″)
    • Flange: T3 twin scroll
    • Exhaust connection: 3″ V-band clamp
    • Ported shroud compressor housing
    • AN4 oil inlet with integrated oil restrictor

    Compressor side

    • Compressor wheel: 9+0 blades machined from the solid billet
    • Inducer: 58mm
    • Exducer: 72mm

    Turbine side

    • Housing: 12cm2 / AR: 0.89 Stainless steel
    • Turbine wheel: 9 blades
    • Inducer: 60mm
    • Exducer: 55mm
    Turbosystems HTX40602 Kullagrad

    Turbosystems HTX3058B3 Kullagrad

    12995 KR

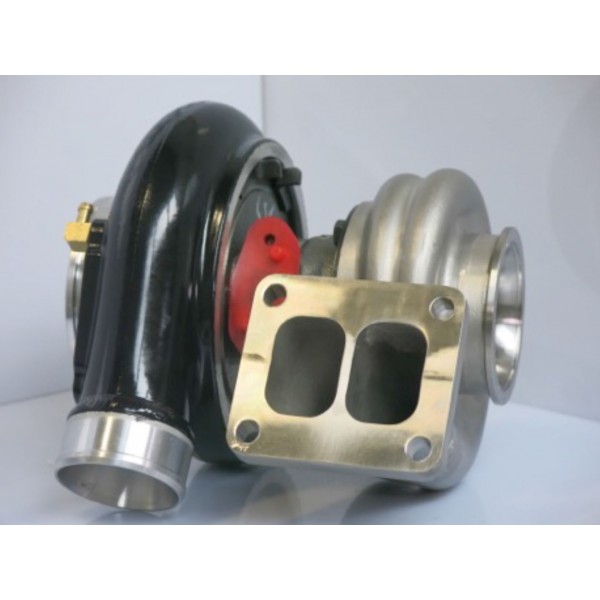

  • Turbosystems HTX40603 Kullagrad

    Turbosystems HTX40603B Kullagrad

    14995 KR
    Art. nr: HTX40603B



    Antalst :
    Kategori:

    Power range:
    500-650 WHP

    ✪ Compressor side Technical features:
    Special point milling design 7 7 blades compressor wheel machined from the solid from
    special grade aircraft aluminum.
    Compressor air Intake diameter: 102 mm
    Compressor air Outlet diameter: 63 mm
    Compressor wheel:
    ✔ Inducer 60 mm
    ✔ Exducer 86 mm extended tip
    ✪ Turbine side Technical features:
    Special design 16 cm2, (AR 0,90) twin scroll turbine housing made from stainless steel suitable
    to work with high temperatures. High flow 10 blades turbine wheel.
    T4 flange twin scroll
    3” V-bound clamp connection for exhaust
    Turbine wheel:
    ✔ Inducer 76 mm
    ✔ Exducer 65 mm

    Turbosystems HTX40603 Kullagrad

    Turbosystems HTX40603B Kullagrad

    14995 KR

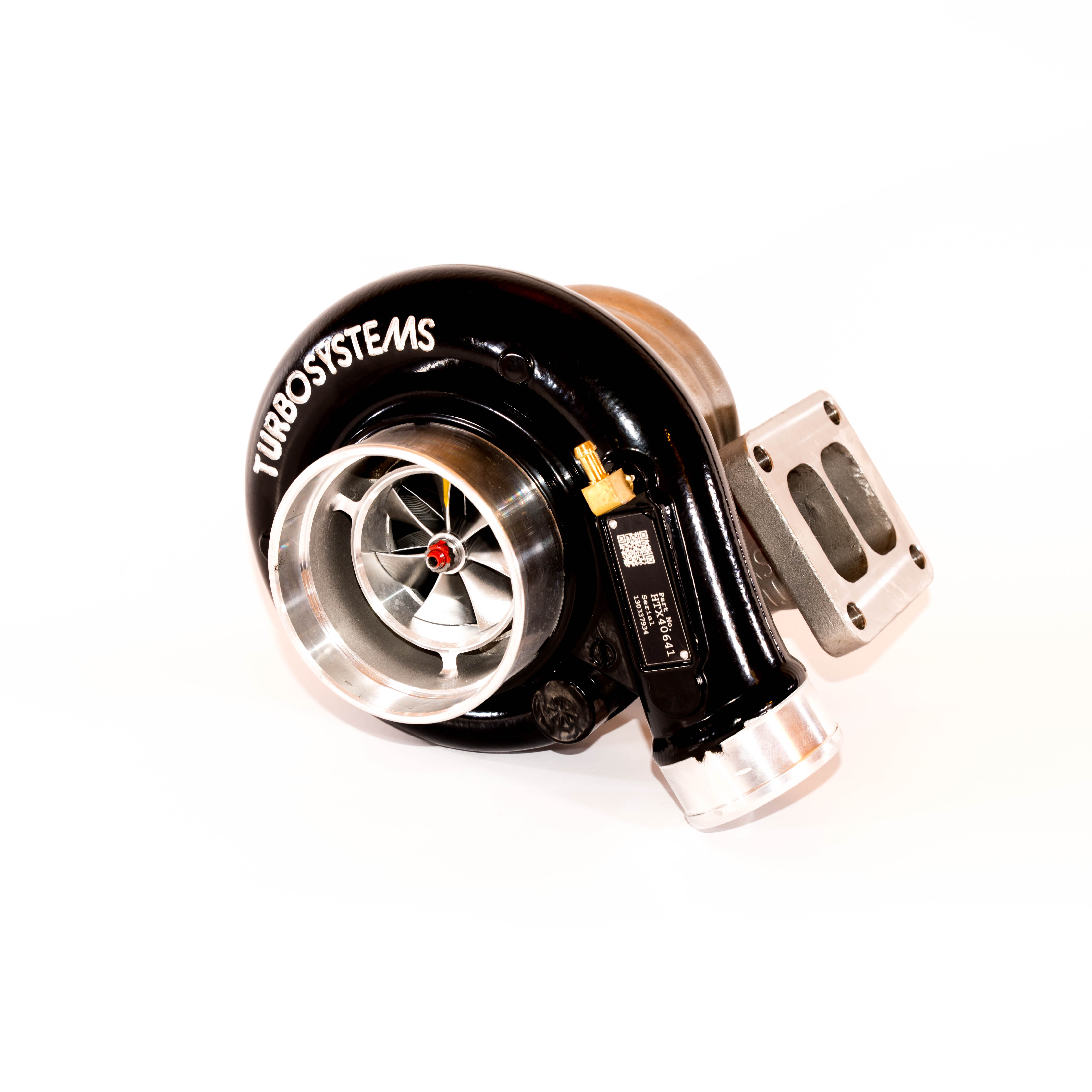

  • Turbosystems HTX40641 Kullagrad

    Turbosystems HTX4064B1 Kullagrad

    15495 KR
    Art. nr: HTX40641



    Antalst :
    Kategori:

    Power range:
    600-750 WHP

    ✪ Compressor side Technical features:
    Special point milling design 7 7 blades compressor wheel machined from the solid from
    special grade aircraft aluminum.
    Compressor air Intake diameter: 102 mm
    Compressor air Outlet diameter: 63 mm
    Compressor wheel:
    ✔ Inducer 64 mm
    ✔ Exducer 86 mm extended tip
    ✪ Turbine side Technical features:
    Special design 16 cm2, (AR 0,90) twin scroll turbine housing made from stainless steel suitable
    to work with high temperatures. High flow 10 blades turbine wheel.
    T4 flange twin scroll
    3” V-bound clamp connection for exhaust
    Turbine wheel:
    ✔ Inducer 76 mm
    ✔ Exducer 65 mm

    Turbosystems HTX40641 Kullagrad

    Turbosystems HTX4064B1 Kullagrad

    15495 KR
